|LOCATION:||41° 01' N, 39° 46' E The port is protected by two breakwaters 850 m. and 440 m. long.|
|ANCHORAGES:||In the outer harbour off the breakwater.|
|PILOTAGE:||Compulsory for berthing and unberthing and anchoring, provided by the TDI (The Turkish Maritime Organization) Pilot. VHF channels 16.|
|TOWAGE:||And/or mooring boat compulsory arranged by pilot and and provided by the TDI (The Turkish Maritime Organization).|
|FLOATING CRAFT:||2 tugboats of 2500 and 800 HP capacities, 2 tugboats of 100 HP capacity.|
|CARGO HANDLED EQUIPMENT:||7 shore cranes of 3 to 25 tons, 12 mobile cranes of 33 to 50 tons, 21 forklifts of 3 to 25 tons, 9 tug masters of 25-50 tons, 12 tractors of 3.5 tons, 2 transtainers of 35 tons, 4 pneumatics with capacities 120 t/h and 80 t/h, 1 container forklift of 40 tons, 1 gantry crane of 35 tons.|
|BULK CARGO FACILITIES:||Grain handled at the main quay using 2 rail mounted loaders.
One grain silo with capacity of 10.000 tons and grain silo capacity of 20.000 tons.|

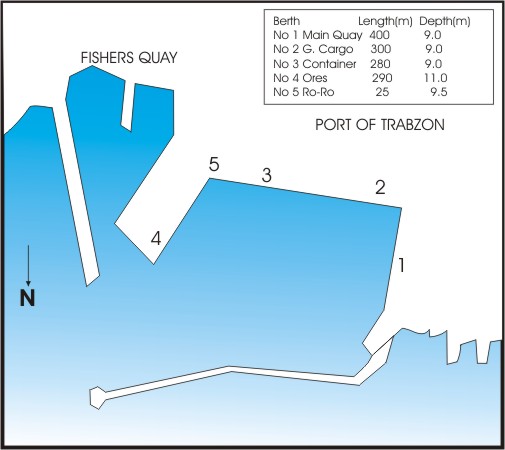

|BERTH||LENGTH (m)||DEPTH (m)|
|No 1 Thw Large quay||400||9,0|
|No 2 G. Cargo||300||10,0|
|No 3 Container||290||10,0|
|No 4 Ore Quay||290||11,5|
|No 5 Ro-ro Quay||25||9,5|
|No 6 Sub Quay||30||9,5|
|No 7 Fisherman's Quay||200||3,0|
|TANKER BERTHS:||The mooring buoys are located to the East of city.
Handled berth no.1 Fuel oil.
No.2 Kerosene, gasoline and gas oil.
Mooring; Two anchors with 6/7 shackle on each and 6 mooring lines to buoys on each quarter, 100m. off when in position.
Discharging 1x8inch stern discharge for kerosene, rate 350-400 cu.m./hr. Pressure 4kg/N, Distance to shore 800m.|
|NATURE OF SEA BOTTOM:||Sand.
|WORKING HOURS:||First shift:08.00-16.30. Second shift:16.30-01.00. Third shift: on demand (overtime to be paid).|
|FRESH WATER:||Available at all berths, rate 20 - 30 t.p.h. (apprx)|
|BUNKER:||Obtainable in limited quanrities through suppliers.|
|AIRPORT:||Distance 5 km. from the port.|
|GARBAGE DISPOSAL:||Service is available.|
|WASTE OIL DISPOSAL:||Service is available.|
