Antalya sea port

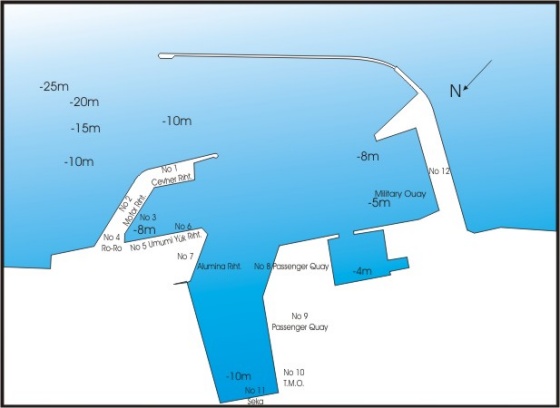

| DIAGRAM: |  |
| LOCATION: | 36° 50' N, 30° 37' E |
| RESTRICTION: | Daylight navigation only for tankers. |
| PILOTAGE: | Compulsory services 24 hours per day VHF channels 16 , 12 and 14. |
| TUGGING: | 3 tugs available (240 h.p. , 900 h.p., 1,125 h.p.) |
| WORKING HOURS/SHIFTS | First Shift: 08.00-16.30, Second Shift: 16.30- 01.00 |
| CARGO HANDLING FACILITIES: | 8 shore cranes of 5 to 25 tons, 5 mobile cranes of 3 to 40 tons, 12 forklifts of 3 to 25 tons, 2 trailers of 25 tons, 3 tractors of 5 tons, 2 loaders of 1 ton. |
| BULK CARGO FACILITIES: | Owned by Etibank, 4 alumina silos each have 4.000 tons capacity. Conveyor belt load at rate of 2.500/300 tons per day. |
| OTHER INFORMATION: | Tanker terminal is United National Terminal in position Lat.
36 49'15"N , Long.30 36'30"E.
Depth of water 17 m.- 18m. L type buoy system.
Discharge line is 10 inch line to stern.
Line can be adjusted to 8 in. or 12 in.
There are 2 tanks farms to receive cargo.
They are 450m - 500m. and 1,600m. from the sea buoy.
Discharge rate 300-400 t.p.h. |
| BERTHING: | The commercial harbor has six alongside berths for oceangoing vessels.
The commercial pier located west of the north jetty has depths alongside of about 10 m., and can easily accommodate a frigate-sized vessel.
The port is protected by two breakwaters 1.440 m and 650 m long.
Port area is 331,600 sq.m.
Maneuvering area has 400 m. diameter, depths 8m. - 11m.
It also servers the still on-going Antalya Free Trade Zone.
A modern cold storage plant with a shocking warehouse of 10.000 tons capacity is existing. |
|
|
|
|
