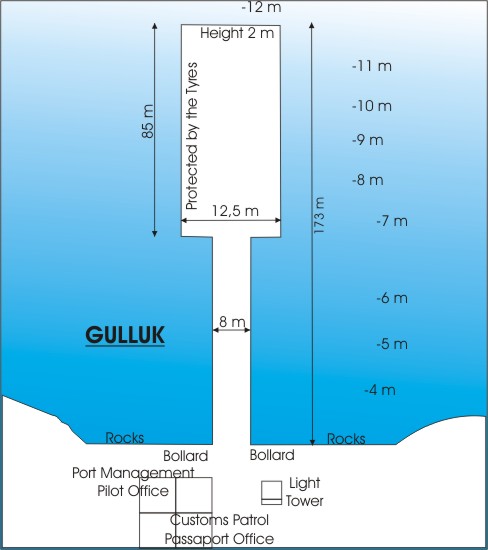

| DIAGRAM: |  |
| LOCATION: | Lat:37° 14' N, Long.27° 38 E |
| RESTRICTIONS: | Gulluk is a well-protected natural harbour, not affected by winds from any direction. Deep water approaches to pier. |
| ANCHORAGES: | Vessels can drop anchor at least one mile distance and NW.ly from the pier. Depth is approximately 20m., bottom sand and mud. |
| PILOTAGE: | Compulsory. Request for pilot should be made through local agent at least 48 hours in advance (on this particular vessel the pilot had been hired from Izmir.) |
| TOWAGE: | Not available. Mooring boat is usually hired from local fishermen. |
| BERTHING: | One pier 170 m. long used for handling emery ore in bulk. Depths alongside 39ft. shelving to 20ft. at 90m. from seaward end. |
| CARGO: | Delivered to quay by trucks. |
| CARGO HANDLING: | No shore or mobile cranes available, all cargo handling by ship's gear. |
| WORKING HOURS: | 08:00hrs - 20:00 hrs in summer, and 08:00hr -24:00hrs in winter. |
| FRESH WATER: | Available by trucks. |
| BUNKER: | Only diesel/by trucks |
